Product Overview
The YZEBC-110 replaces the YEBC-100. The YEBC-110 has several improvements including: the pivot point has been moved for an easier cut, stronger safety shield, and a more durable frame.

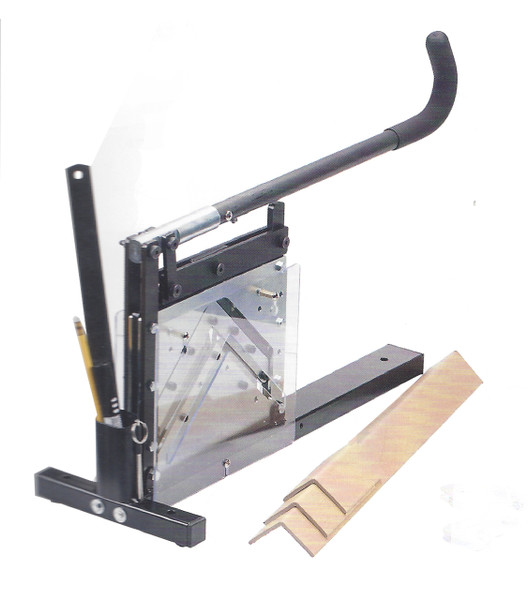

The YZEBC-110 cuts cardboard edge protection products to the exact lengths needed for your pallets, products, or frames. This machine is perfect for any facility that ships pallets of varying heights or that uses edge protection products to secure uneven shipments or stiffen cartons. The machine eliminates the need for using knives, saws, or other potentially dangerous methods to cut Edge Protection Boards to the necessary lengths. The machine is portable and should be securely mounted to a sturdy work station. The machine can be secured with screws by utilizing the holes provided in the frame or with c-clamps (not provided). On the front of the cutter is a holder for supplies such as pens, pencil, marker, ruler, allen wrench etc.
* For Edge Protection up to 4” (100mm) x 4” (100mm) and 3/8” (10mm) thick.
* Heavy duty metal construction with ergonomically correct handle.
* Sharp guillotine cut with easily replacable blades.
* Has pin to secure handle and compartment for shipping supplies.
* Small table top design - 21” (534mm) x 8” (203mm) x 32” (813mm)- Weight 16 Lbs
(7.25kgs)
Machine Specifications:
* Length - 21” (534mm)
* Width - 8” (203mm)
* Height - 32” (813mm)
* Weight - 16 Lbs (7.25 Kgs)
Cardboard Edge Protection Specifications:
* Length - 4” (100mm)
* Length - 4” (100mm)
* Thickness - 3/8” (10mm)
Items included in Carton:
* 1 each YZEBC-110 Cutter for Cardboard Edge Board Protection
* 1 each Instruction Manual
* 1 each Allen Wrench for changing blades
* 1 each Magnet to hold blades during handling
